Full Automation H Type Poultry Layer Battery Cage with Multi Layer Vertical Design

Production Capacity : 50000

Heating and Ventilation Equipment Type : Air Duct

MOQ : 100

Application : Chicken

Blade Type : Curved Teeth

Color : Customized

Subject : Layer

Origin : China

Tiers : 3-8

HS Code : 84362900

Birds : ≥10000

Specification : Standard

Price : Negotiable

Power Source : Electric

Certification : ISO9001:2008, SGS

Model NO. : broiler cage

Transport Package : Standard

Contact Now

Full Automation Poultry Chicken Layer Battery Cage Multi Layer Vertical Design H Type

Reliable Factory Direct Poultry Layer Battery Cages for Sale

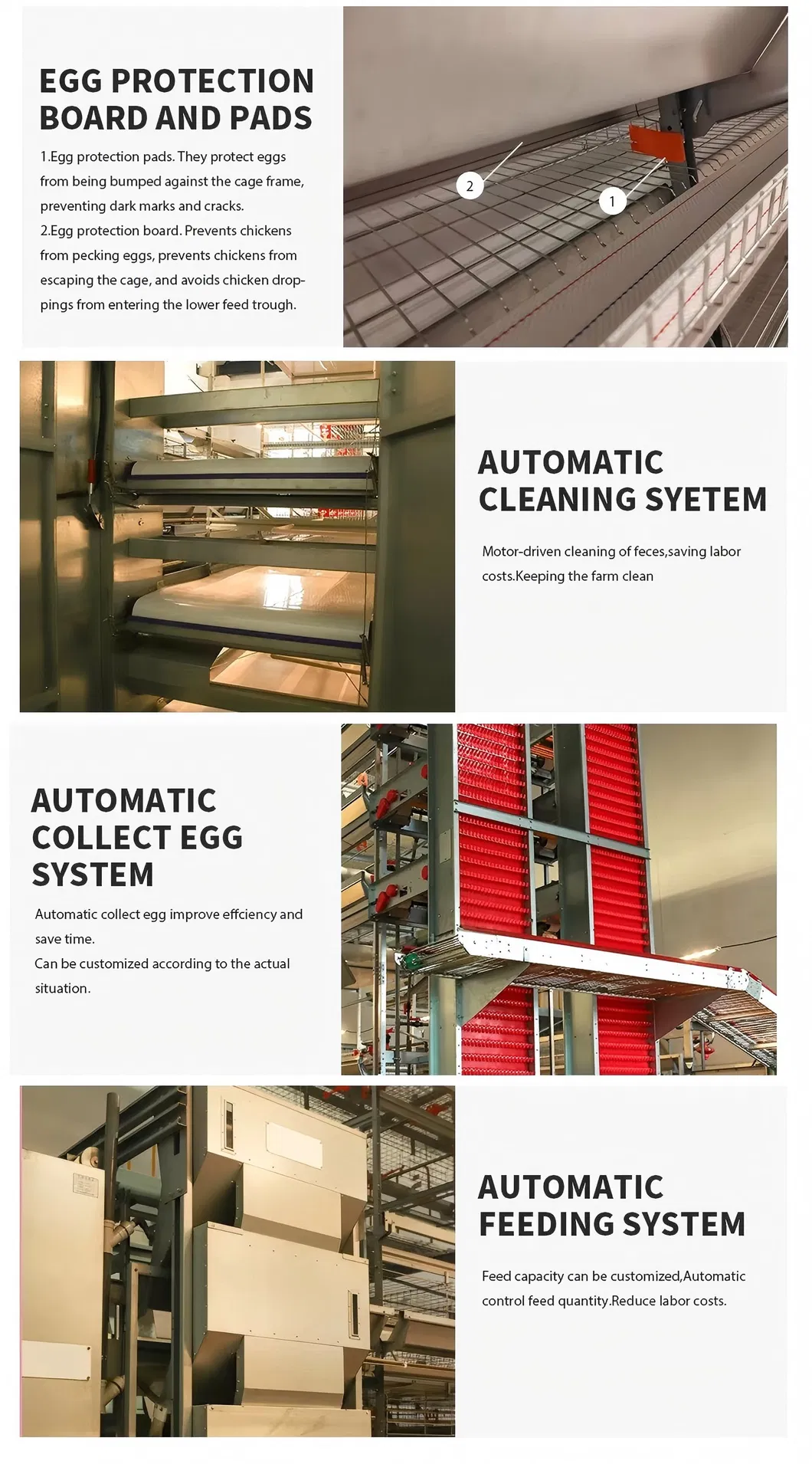

Key Features & Benefits

Ultra-high space utilization: Multi-layer vertical design increases capacity by 30%-100% compared to A-type ladder cages, reducing land and construction costs by 25%-30%. Ideal for land-scarce regions including the Middle East, Africa, and Southeast Asia.
Full automation & labor saving: Integrated automatic feeding, nipple drinking, egg collecting conveyor, and layered belt manure removal. One worker can manage 30,000-50,000 hens, reducing labor costs by over 70% and minimizing egg breakage.
Cleaner housing & disease prevention: Independent manure belts under each tier prevent cross-contamination. Reduces ammonia and bacteria levels to lower chicken mortality and respiratory diseases. Centralized manure collection supports organic fertilizer production and meets global environmental standards.
Durable hot-dip galvanized structure: All frames and wire mesh made of hot-dip galvanized steel with strong anti-corrosion performance for humid poultry houses. Service life of 15-20 years with low failure rate. Smooth rounded mesh prevents chicken injury and egg cracking.
Intelligent enclosed breeding: Perfectly compatible with closed environmental control houses. Automatic ventilation, temperature, humidity, and light adjustment stabilize laying performance in extreme weather. Human-chicken separation reduces virus invasion risks.
Higher farming profit: Stable breeding environment reduces chicken stress, with annual egg output up to 320 pieces per hen. High stocking density plus low labor and medicine costs significantly boost farm revenue. Customizable modular tiers fit farms of all sizes for global export.

Full Automation H Type Poultry Layer Battery Cage with Multi Layer Vertical Design

Product Specifications

Product Name	H Type Layer Cage
Material	Hot galvanized material
Tiers	3/4/5/6/8 tiers
Capacity	180/240/300/360/544 birds/unit
Size	2250mm600mm430mm 2400mm700mm520mm
Area per chicken	450cm²/494cm²
Raising Quantity	>20,000
Supporting System	Automatic Feeding System, Automatic Nipple Drinking System, Automatic Manure Removal System, Environmental Control System
